RJ45 Terminal Block Adapter RJ45 to 8Pin Screw Terminal Block
RJ45 Terminal Block Connector
 RJ45 plug to 8Pin Screw Terminal Block
RJ45 to Screw Terminal Block Adapter
 RJ45 male to 8Pin Screw Terminal Block
 RJ45 to 8Pin Screw Terminal Block Adapter
RJ45 Terminal Block Adapter RJ45 to 8Pin Screw Terminal Block
RJ45 Terminal Block Connector
 RJ45 plug to 8Pin Screw Terminal Block
RJ45 to Screw Terminal Block Adapter
 RJ45 male to 8Pin Screw Terminal Block
 RJ45 to 8Pin Screw Terminal Block Adapter
RJ45 Terminal Block Adapter RJ45 to 8Pin Screw Terminal Block
RJ45 Terminal Block Connector
 RJ45 plug to 8Pin Screw Terminal Block
RJ45 to Screw Terminal Block Adapter
 RJ45 male to 8Pin Screw Terminal Block
 RJ45 to 8Pin Screw Terminal Block Adapter

RJ45 Terminal Block Adapter RJ45 to 8Pin Screw Terminal Block|PINOWELL

PNW-RJ45M2STMNL8P-AD
Color:Black Dimension:63 x 25 x 15.5mm Type:RJ45 Male Plug to 8Pin Screw Terminal Block Adapter Connector A: RJ45 8P8C Male Plug,Cat5e Shielded Connector Connector B: 8Pin Screw Terminal Block,90 Degree Angled/Solderless Applications:Expand CAT5 Cat5e Ethernet, routers, computers and other network devices,such as CCTV camera, audio and video simulation and other uses.
$6.99 USD $0.00 USD
Free worldwide shipping
Free returns
Carbon neutral
Secure payments
Quantity
Only 2000 left
Volume Pricing
Quantity
Price
1+
$6.99 USD each
Inventory quantity : 2000

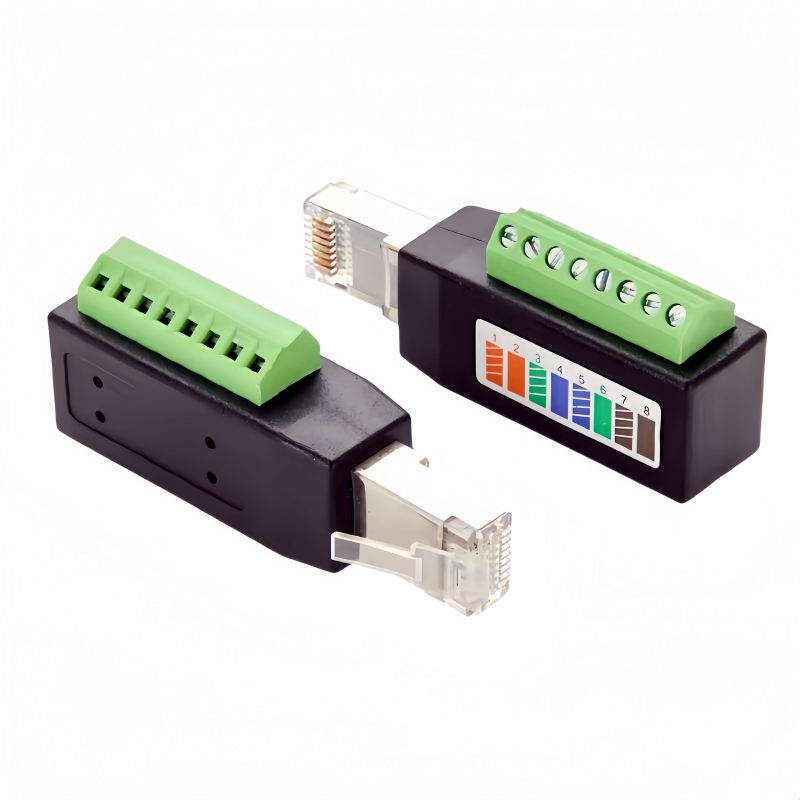

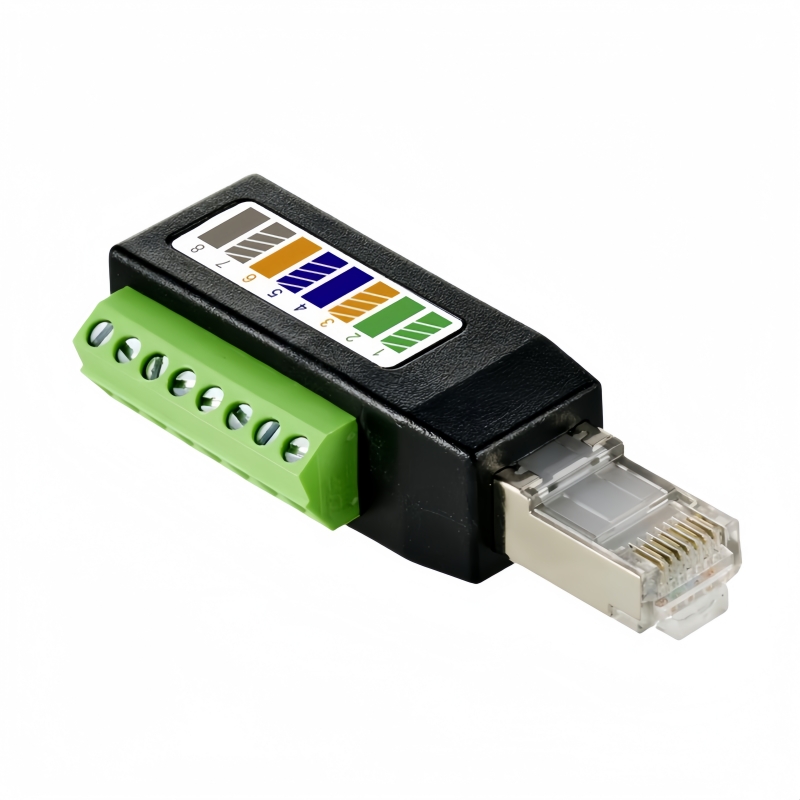

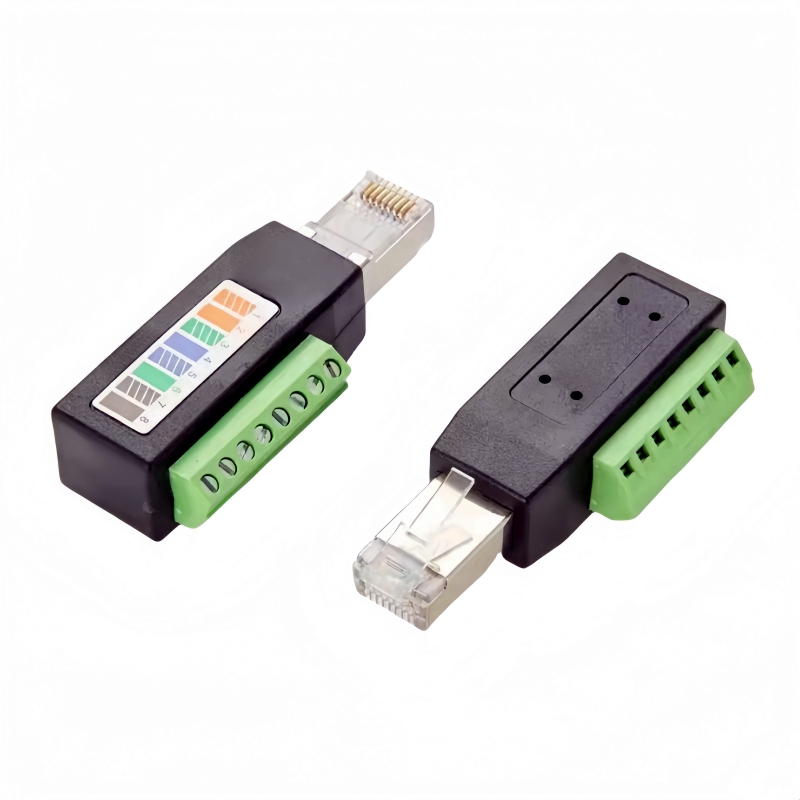

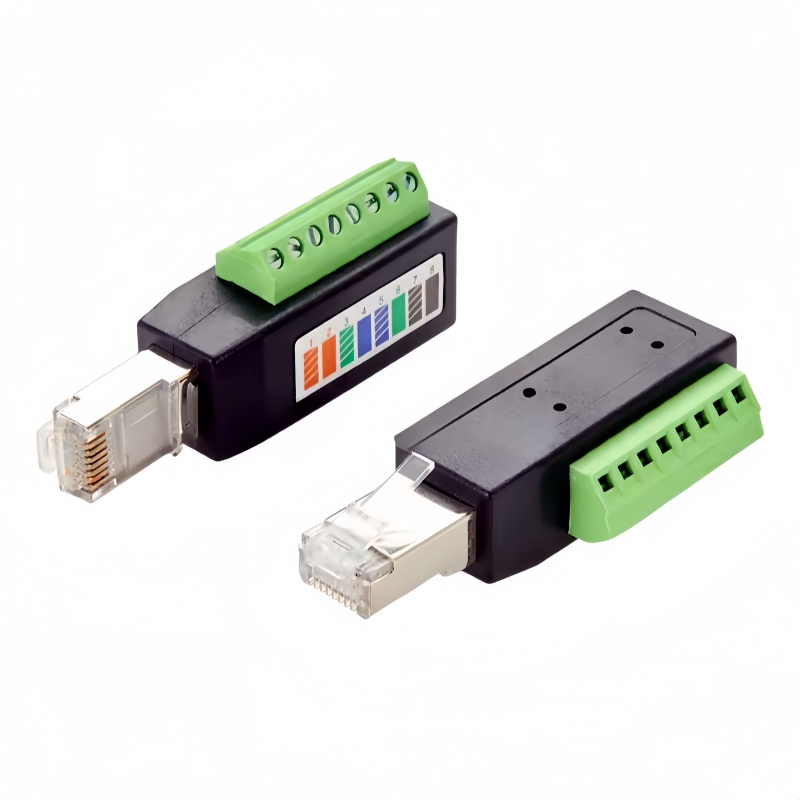

RJ45 Male Plug to 8-Pin Screw Terminal Block Adapter – Versatile Ethernet Connector

Optimized for: Home networking, office networks, surveillance systems, audio/video setups.

This RJ45 male plug to 8-pin screw terminal block adapter offers a convenient solution for expanding and customizing Ethernet connections. With its compact design and durable construction, it's suitable for various applications such as connecting routers, computers, CCTV cameras, and for audio and video simulation purposes. It enables easy wire termination without soldering, ensuring stable signal transmission in different network setups.

Technical Specifications

Category Details
Interface RJ45 8P8C male plug to 8-pin screw terminal block
Protocol Cat5e (1Gbps up to 100 meters, 10/100/1000BASE-T)
Cable Gauge 24 AWG
Shielding Unshielded (UTP)
Pin Assignment 1:1 (matching standard Ethernet pinouts)
Pitch 3.50 mm
Material Plastic (housing) with metal shield, pure copper wire for conductors
Dimensions 63mm (L) × 25mm (W) × 15mm (H)

Core Advantages

  1. Compact and Durable Design
    • Both the 8-pin screw connector and the RJ45 male connector are securely soldered to a compact PCB board, making it ideal for tight spaces.
    • Ensures a stable and durable connection, even in environments with vibrations or frequent movement.
  2. High-Quality Construction
    • Made of plastic with a metal shield and uses pure copper wire for excellent conductivity.
    • The bolt screw type terminals provide a reliable way to connect external network cables and transmit network signals.
  3. Stable Signal Transmission
    • Offers stable and safe signal transfer, allowing for seamless network communication.
    • Its ultra-compact size makes it highly portable, enabling use in various locations as needed.
  4. Easy Installation
    • No soldering is required. Just use a small screwdriver to open the terminal block, slide in the stranded or solid wire, and then turn the screw to fix the copper wire.
    • Simplifies the process of connecting and customizing network cables for different devices.
  5. Wide Range of Applications
    • Ideal for expanding CAT5 and Cat5e Ethernet connections for routers, computers, and other network devices.
    • Useful for video transmission in CCTV cameras and for audio and video simulation tasks.

Design Features

1. Terminal Block Layout

  • Pins:
    • 1: White/Orange (TX+)
    • 2: Orange (TX-)
    • 3: White/Green (RX+)
    • 4: Blue (Reserved)
    • 5: White/Blue (Reserved)
    • 6: Green (RX-)
    • 7: White/Brown (Reserved)
    • 8: Brown (Reserved)

2. Safety and Protection

  • While unshielded (UTP), it is designed to minimize signal interference in typical indoor environments.
  • The metal shield within the construction helps protect against some external electromagnetic influences.

Applications

  1. Home and Office Networks
    • Connecting desktop computers, laptops, and printers to routers for stable internet access.
    • Extending Ethernet connections to additional rooms or workstations.
  2. Surveillance Systems
    • Linking CCTV cameras to network video recorders (NVRs) or directly to routers for remote monitoring.
    • Enabling easy setup and configuration of multiple cameras in a security system.
  3. Audio/Video Setups
    • Facilitating the connection of media players, smart TVs, or audio equipment for streaming and playback purposes.
    • Useful in small-scale audio and video simulation projects.

Installation Guide

Step 1: Prepare Wires

  • Strip around 6 - 8mm of insulation from the ends of the 24 AWG wires (stranded or solid).

Step 2: Open the Terminal Block

  • Use a small screwdriver to loosen the screws on the 8-pin screw terminal block.

Step 3: Insert Wires

  • Insert the stripped wire ends into the corresponding slots of the terminal block according to the pin assignment (e.g., insert the wire for Pin 1 = White/Orange into the appropriate slot).

Step 4: Secure the Wires

  • Tighten the screws on the terminal block to firmly hold the wires in place. Make sure not to overtighten to avoid damaging the wires.

Step 5: Connect to RJ45 Device

  • Plug the RJ45 8P8C male plug into the Ethernet port of the desired device such as a router, computer, or CCTV camera.

Step 6: Test the Connection

  • Check the network connectivity on the connected device. For example, if it's a computer, see if it can access the internet or local network resources. Use network testing tools if needed to verify the speed and stability of the connection.

Troubleshooting Tips

Issue Solution
No Network Connection Check wire pinouts to ensure correct insertion according to the 1:1 assignment. Also, verify that the RJ45 plug is properly inserted into the device port.
Weak or Unstable Signal Make sure the wire connections at the terminal block are tight. Check for any visible damage to the wires or the adapter itself. If possible, try using a different cable or port on the device.
Intermittent Connection Check for any loose screws at the terminal block and tighten them if needed. Ensure that the adapter is not subjected to excessive vibration or interference from nearby electrical sources.

Why Choose This Adapter?

  • Cost-Effective: Provides a simple and affordable way to customize and expand Ethernet connections without the need for complex installation or additional expensive equipment.
  • Versatility: Its wide range of applications makes it suitable for both home and professional network setups, from basic computer networking to more specialized audio/video and surveillance systems.
  • Ease of Use: The screw terminal design allows for quick and easy wire connections, even for those with limited technical skills.
Technical Support: Our team is available to assist with any questions regarding installation, compatibility, or troubleshooting.
Enhance Your Network Connectivity with Ease 🛠️🔌Keywords: RJ45 to screw terminal block, Cat5e adapter, Ethernet connection, network expansion, CCTV camera connection.
