USB to RJ12 APC PDU Serial Converter Cable | FTDI FT232RL+ZT213 Chipset,Next-Gen Serial Connectivity for APC Power Distribution Units

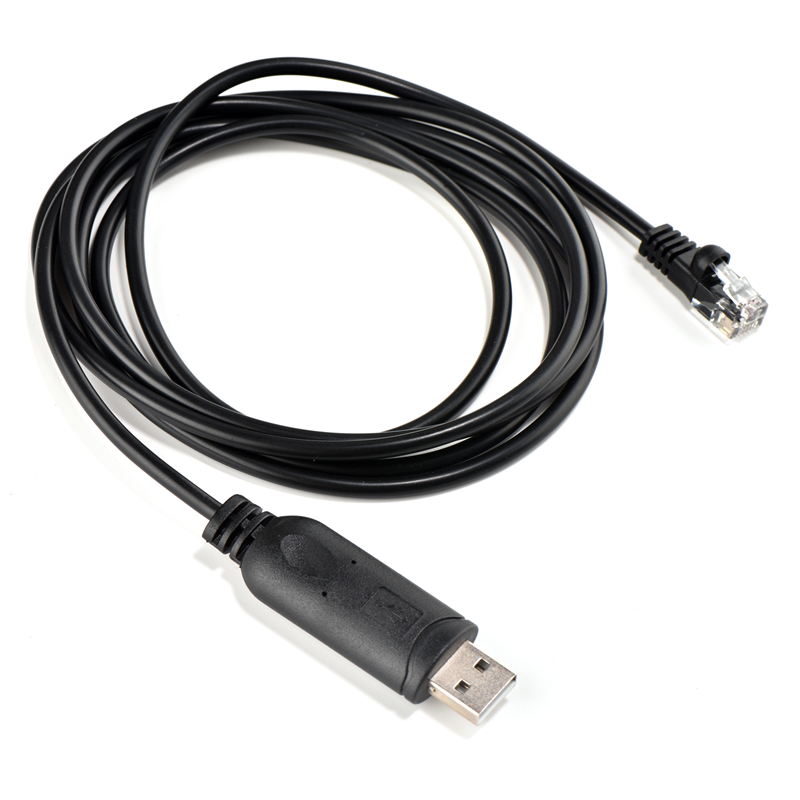

The USB to RJ12 APC PDU Serial Converter Cable bridges modern USB ports with legacy RS232-equipped APC PDUs, delivering seamless control and monitoring for critical power infrastructure.
Key Features
- FTDI FT232RL+ZT213 Chipset: Ensures rock-solid compatibility with APC PDUs and plug-and-play simplicity across Windows, macOS, Linux, and Android.
- APC 940-0144 Replacement: Fully compatible with APC 940-0144/940-0144A PDUs, supporting AP78xx, AP79xx, AP86xx, AP88xx, AP89xx, and other APC models.
- 6P6C RJ12 Connector: Directly interfaces with APC PDU console ports for secure, tool-free connections.
- Premium Cable Construction: 28AWG bare copper conductors (4C, OD3.5mm) ensure low latency and EMI resistance.
Technical Specifications
| Specification | Details |
|---|---|
| Interface | USB 2.0 Type-A Male to RJ12 6P6C Jack Plug |
| Chipset | FTDI FT232RL + ZT213 |
| Protocol | RS232 (TTL level) |
| Cable Length | 6FT/1.8M |
| OS Support | Windows, macOS, Linux, Android, Windows CE |
| Certifications | CE, FCC, RoHS |
Applications
- APC metered/rack PDUs (AP78xx, AP79xx, AP86xx, AP88xx, AP89xx).
- APC Smart-UPS and legacy power management systems.
- Data center infrastructure monitoring and control.
Features
- Reliability: Imported FTDI chipset with built-in RS232 level shifter ensures stable performance.
- Plug-and-Play: Drivers auto-install on Windows/Linux; macOS requires FTDI driver download.
- Durability: Molded strain relief on both ends withstands frequent use.
Compatibility List
- APC PDU Models:
- AP7000, AP8000, AP9000, AP6000
- AP7721, AP7723, AP7730, AP7752
- AP78xx, AP79xx, AP86xx, AP88xx, AP89xx
Upgrade Your APC PDU Control
Replace cumbersome DB9 cables with the USB to RJ12 Converter—engineered for speed, security, and scalability in enterprise environments.
Replace cumbersome DB9 cables with the USB to RJ12 Converter—engineered for speed, security, and scalability in enterprise environments.
How to Use the USB to RJ12 APC PDU Serial Converter Cable
Step 1: Hardware Setup
-
Connect to Computer:

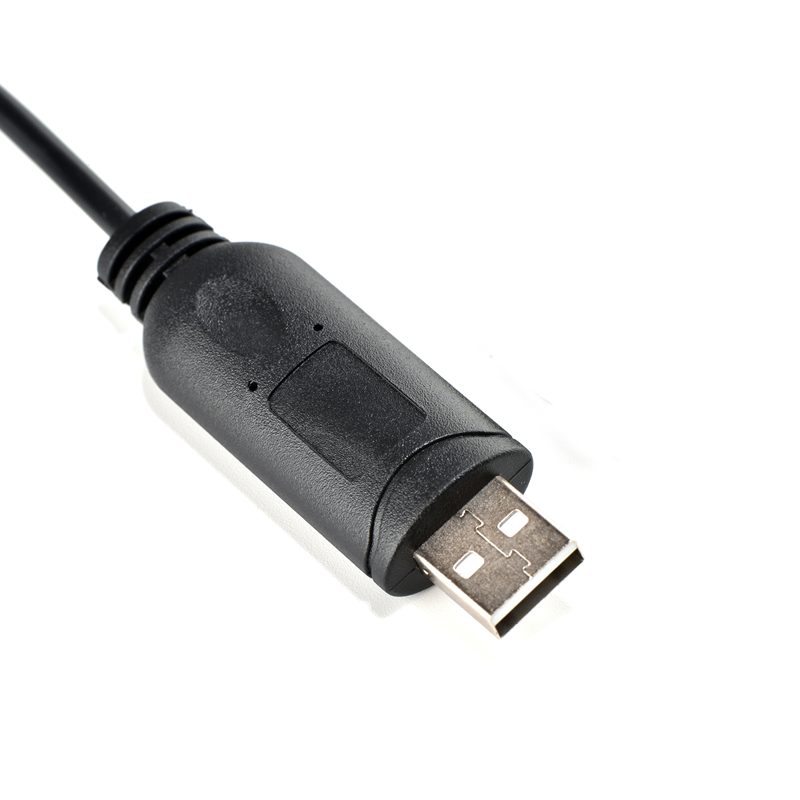

- Plug the USB Type-A male connector into your laptop/PC’s USB port.
- Ensure the cable is securely seated.
-
Connect to APC PDU:
- Insert the RJ12 6P6C jack plug into the APC PDU’s console port (labeled "DB9" or "RS232").
- Push until it clicks to confirm a secure connection.
Step 2: Driver Installation
-
Windows:
- Plug in the cable. Windows may auto-install drivers via Windows Update.
- If prompted, allow driver installation.
- Verify the port appears in Device Manager > Ports (COM & LPT).
-
macOS:
- Download the FTDI VCP Driver from FTDI’s official website.
- Install the driver and restart your Mac.
-
Linux:
- Drivers are pre-installed by default for most distributions.
- Confirm the port at /dev/ttyUSB0 or similar.
Step 3: Configure Serial Software
-
Choose a Terminal Emulator:
- Windows: Tera Term, PuTTY.
- macOS: CoolTerm, ZTerm.
- Linux: Minicom, Screen.
-
Set Serial Parameters:
- Baud Rate: 9600 (default for APC PDUs).
- Data Bits: 8.
- Stop Bits: 1.
- Parity: None.
- Flow Control: None.
-
Open the Port:
- Select the COM port assigned to the cable (e.g., COM3 on Windows, /dev/ttyUSB0 on Linux).
Step 4: Access APC PDU Interface
-
Power On the PDU:
- Ensure the APC PDU is powered and operational.
-
Login to PDU Console:
- Press Enter in the terminal to trigger the login prompt.
- Use default credentials (e.g., admin/admin or refer to your PDU’s manual).
-
Execute Commands:
- Use APC’s CLI commands (e.g.,
show status,reboot outlet 1).
- Use APC’s CLI commands (e.g.,
Troubleshooting Tips
-
No Connection:
- Verify the cable is fully inserted into both devices.
- Check the PDU’s console port label (ensure it’s RS232, not Ethernet).
-
Driver Issues:
- Reinstall the FTDI driver for macOS/Linux.
- On Windows, update drivers via Device Manager.
-
Communication Errors:
- Confirm baud rate and parity settings match the PDU’s configuration.
- Try a shorter cable or shielded cable if EMI interference is suspected.
Safety Notes
- Power Off: Disconnect the PDU from the mains before modifying connections.
- Avoid Overload: Do not use the cable for non-APC devices unless specified.
- Firmware Updates: Keep the PDU’s firmware updated for compatibility.
